(Fits Brake Band Style Holdowns)

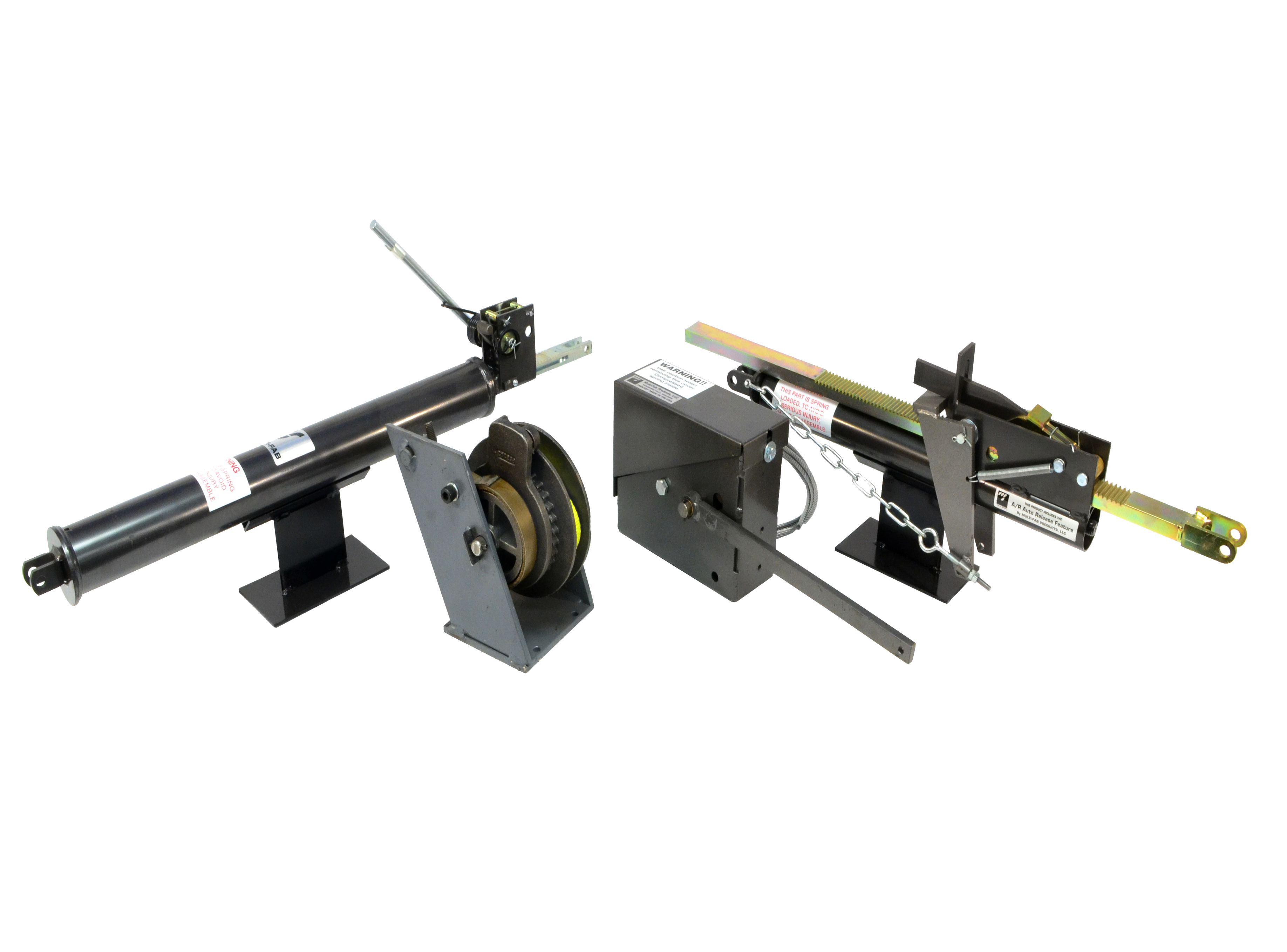

Multi-Fab offers an alternative to the brake band style holdowns supplied by the OEM. This ratchet bar style holdown with the patented A/R release is a basic bolt in place replacement with only one minor alteration, which requires a right-angle grinder. Simply grind and remove the welded pin in the subframe, bolt in the new conversion bracket, and pin the new holdown in place. It's that simple!

Two versions ensure that there is a replacement for both the more common left-hand mount as well as the rarer right-hand version. Determining the proper part is easy. The original lower mounting pin is either on the left or right of the subframe member when looking into the leveler as shown in the photos below.
Left-Hand or Outboard Mount (SMF5014AR)-Figure 1

Right-Hand or Inboard Mount (SMF5019AR)-Figure 2
This kit will also work with the older style holdown installed as original equipment. This holdown typically had no float spring tube assembly and a cantilevered release arm.
Holdown Conversion KitsFor more information on Multi-Fab products, call 1-262-502-1707 or visit the Multi-Fab web site at
